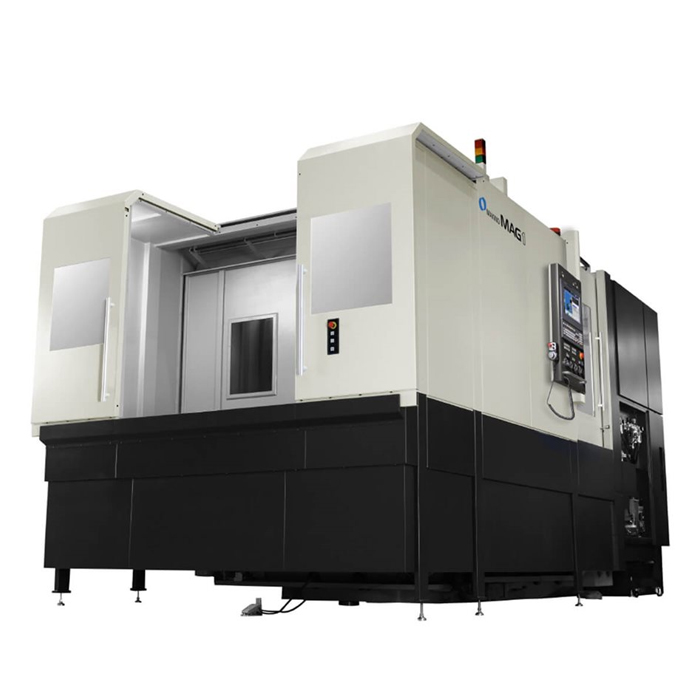

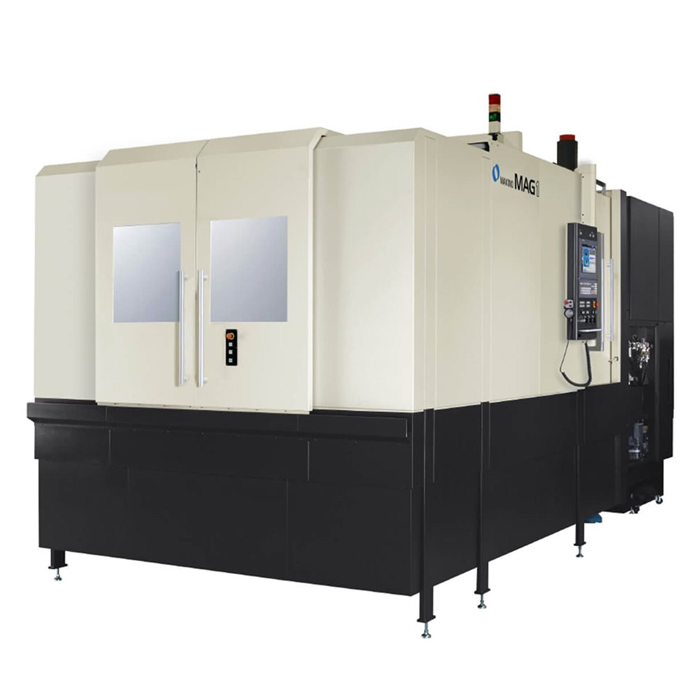

A 5-axis horizontal machining center, the MAG1 is specifically designed for high-productivity machining of complex aluminum monolithic parts for aerospace.
The MAG1 integrates speed and power of the spindle with a machine platform that provides rapid precision-contouring capability while maximizing the percentage of the total time the spindle is cutting. The number of process variables related to the part production and the number of setups are both minimized.
The MAG1 has an industry-leading spindle design to ensure high metal-removal rates. The MAG1 can also be configured with an automatic pallet transfer and storage system in Makino’s highly flexible MMC system that enables extended periods of unattended operation.
Standard Specifications
Pallet
800 x 1000 mm
X Axis
1,520 mm
Y Axis
1,100 mm
Z Axis
1,350 mm
A Axis
210° (-110°to +100°)
B Axis
360°
C Axis
None
Spindle RPM
33,000 rpm - 80 Kw
Rapid Traverse
50,000 mm/min
Cutting Feedrate
50,000 mm/min
Maximum Workpiece
?1,500 x 1,500 mm
Maximum Payload
1,300 kg
ATC Capacity
120 (option 241)
Tool to Tool
17 sec
Chip to Chip
20 sec
Maximum Tool Diameter
90 mm
Maximum Tool Weight
8 kg
